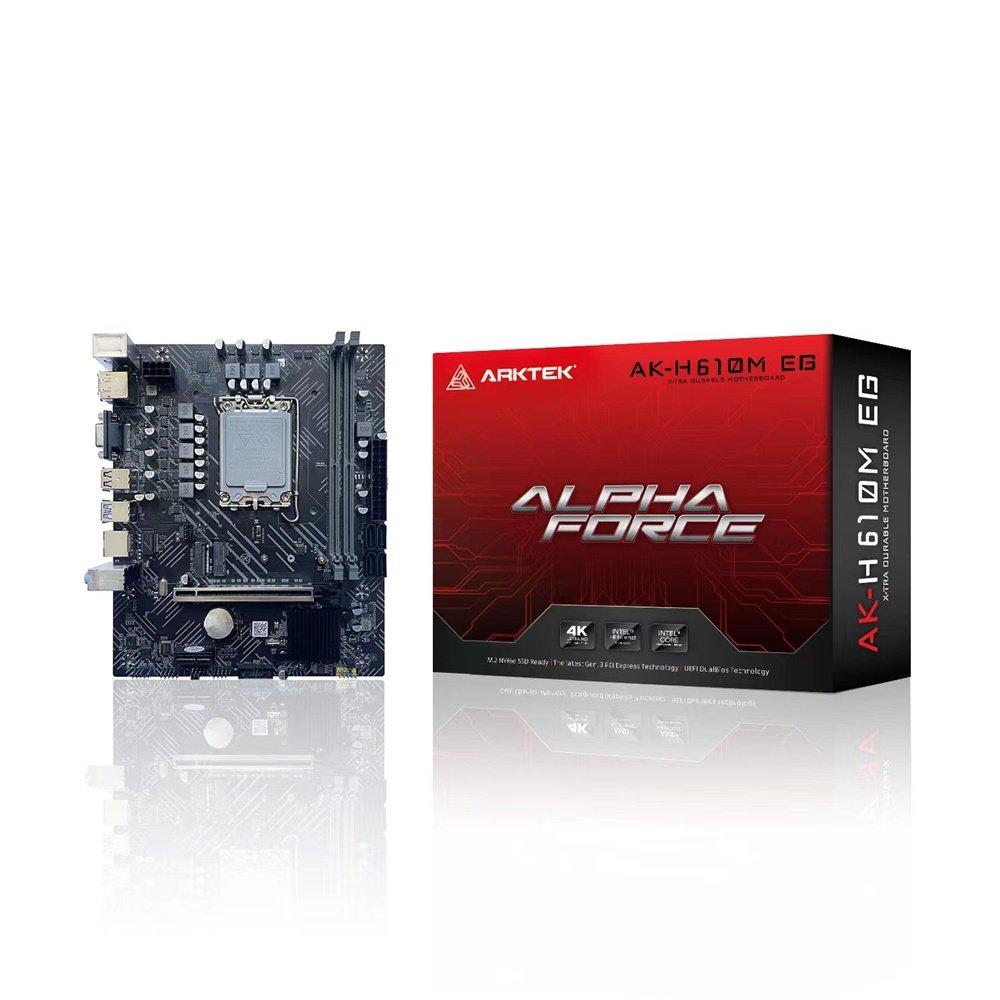

Intel H610
+ Model: AK-H610MB EG + Socket: LGA1700 + Chipset: Intel H610 + Memory Support: Dual Channel DDR4
Overview
- CPU Support: Supports Intel® Socket LGA1700 Core™I9/ i7/ i5/i3 processors
- Chipset: Intel H610 Chipset
- On-Board Graphics: Integrated Graphics Processor-Intel® HD Graphics support
- Memory: Dual Channel DDR4 2133/2400/2800MHz
- DIMM: 2 x Memory Slots
- LAN: Realtek 8111H 100M/1000Mbps Support wake-up on LAN, PXE function
- Audio: Built-in 6-channel HD audio chip
- SATA: 4 X SATA3.0 M.2 (1*M.2_SATA） 1*M.2 WIFI/Bluetooth Port
- Internal I/O:2x USB connector, can support 2*USB 2.0 & 2*USB 3.0
- Expansion Slots: 1 x PCI Express x16 slot 1 *PCI Express x1 slot
